Cat 287D Skid Steer Loader

cat 287



Rent it for $420/day  (plus tax & Damage Waiver)…………………………………………………..

Engine Model Cat C3.3B DIT (Turbo)
Net Power 72.9 hp
Gross Power 74.3 hp
Gross Power SAE J1995 74.3 hp
Net Power EEC ISO 9249 73.7 hp
Net Power SAE 1349 72.9 hp
Displacement 203.0 in3
Bore 3.7 in
Stroke 4.7 in

WEIGHTS

Operating Weight 9929.0 lb

OPERATING SPECIFICATIONS

Rated Operating Capacities: 50% Tipping Load 4000.0 lb
Rated Operating Capacities: 35% Tipping Load 2800.0 lb
Ground Contact Area 2561.0 in2
Ground Pressure 3.9 psi
Tipping Load 8000.0 lb
Breakout Force, Tilt Cylinder 7291.0 lb
Rated Operating Capacity with Optional Counterweight 4250.0 lb

DIMENSIONS

Length of Track on Ground 71.1 in
Overall Length of Track 90.0 in.
Length w/Bucket on Ground 146.2 in
Length w/o Bucket 117.9 in
Height to Top of Cab 83.2 in
Vehicle Width 78.0 in
Max. Overall Height 158.1 in
Bucket Pin Height at Max. Lift 125.1 in
Bucket Pin Height at Carry Pos. 7.5 in
Reach at Max. Lift/Dump 30.8 in
Clearance at Max. Lift/Dump 94.0 in
Ground Clearance 8.9 in
Departure Angle 38°
Maximum Dump Angle 51°
Turn Radius from Ctr – Rear 67.4 in
Turn Radius from Ctr – Coupler 58.8 in
Turn Radius from Ctr – Bucket 92.0 in
Max. Reach w/Arms Parallel 50.9 in
Rack Back Angle at Max Height 84°
Bucket Pin Reach at Max Lift 15.4 in

HYDRAULIC SYSTEM

Hydraulic Flow Standard
Loader Hydraulic Pressure 3335.0 psi
Loader Hydraulic Flow 23.0 gal/min
Hydraulic Power 44.0 hp
Hydraulic Flow High Flow XPS
Loader Hydraulic Pressure 4061.0 psi
Loader Hydraulic Flow 32.0 gal/min
Hydraulic Power (calculated) 76.0 hp

CAB

ROPS ISO 3471:2008
FOPS ISO 3449:2005 Level I
FOPS Level II ISO 3449:2005 Level II

POWER TRAIN

Travel Speed Forward 6.0 mph
Travel Speed Reverse 6.0 mph
Travel Speed Reverse – 2-Speed Option 9.4 mph
Travel Speed Forward – 2-Speed Option 9.4 mph

SERVICE REFILL CAPACITIES

Cooling System 3.7 gal
Engine Crankcase 3.0 gal
Fuel Tank 24.8 gal
Hydraulic System 13.7 gal
Hydraulic Tank 10.3 gal

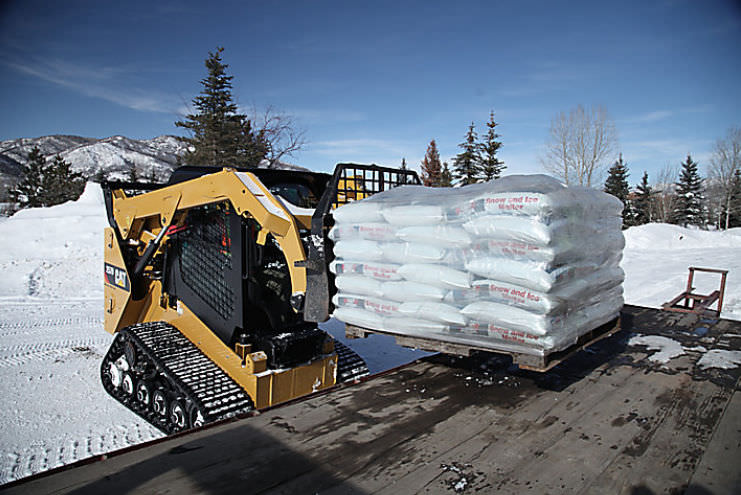

cat 287d action2 cat 287 action
