Telehandler 5k 20′ (Cat TH255c)

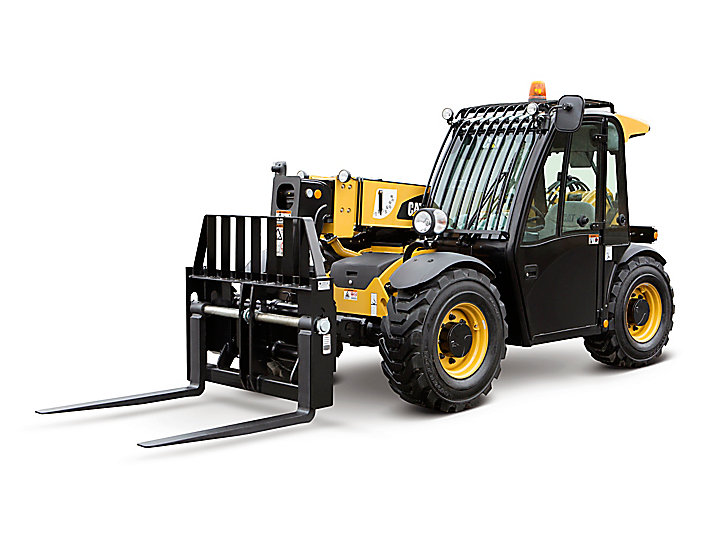

cat th255

Rent it for $315/day ………………………………………..

Telehandler, lull

Engine Model TD 2.9L L4 (U.S. EPA Tier 4 Final emission standards)
Gross Power 74.0 hp
Displacement 177.0 in3
Maximum Torque @ 1,800 rpm 193.0 lb ft

WEIGHTS

Operating Weight with Carriage and Forks 11000.0 lb

OPERATING SPECIFICATIONS

Rated Load Capacity 5500.0 lb
Maximum Lift Height 18.37 ft
Maximum Forward Reach 10.83 ft
Capacity at Maximum Height 3000.0 lb
Capacity at Maximum Reach 1700.0 lb
Top Travel Speed – 12 × 16.5 Tires 15.0 mph
Top Travel Speed – 14 × 17.5 Tires 17.0 mph
Turning Radius over Tires – 12 × 16.5 Tires 127.0 in
Turning Radius over Tires – 14 × 17.5 Tires 125.0 in

TIRES

Standard 12.00 × 16.5
Optional 14.00 × 17.5; 10.5 × 18; 33 × 12-20 non-marking

SERVICE REFILL CAPACITIES

Fuel Tank 24.0 gal
Hydraulic System 24.0 gal

BOOM PERFORMANCE

Boom Up 6.8 Seconds
Boom Down 4.6 Seconds
Tele In 3.8 Seconds
Tele Out 6.7 Seconds
Bucket Crowd 2.0 Seconds
Bucket Dump 2.5 Seconds
Drawbar Pull (Loaded) 8700.0 lb

BRAKES

Features Light on dash indicates when brake is on.
Parking Brakes Wet disc spring-applied hydraulic release
Service Brakes Inboard wet disc brakes on front axle

AXLES

Types High bias limited slip differential on front axle.
Types Planetary on front and rear axles.

TRANSMISSION

Forward Variable Speed
Reverse Variable Speed
Transmission Hydrostatic

INSTRUMENTS

Types Indicators for machine hours, fuel-level, steer mode and steering pressure.
Types Panel and switches are illuminated for night operation.
Types Reverse motion alarm.
Types Indicators for battery charge, coolant temperature, parking brake and engine pre-heat.

HYDRAULIC SYSTEM – IMPLEMENT

Auxiliary Hydraulic Circuit Used for all attachments equipped with cylinders or other hydraulic components. Consists of valves, controls & hydraulic lines.
Maximum Pump Flow 19.0 gal/min
Maximum System Pressure 3500.0 psi
Pump Type Gear pump

……………………………………………..

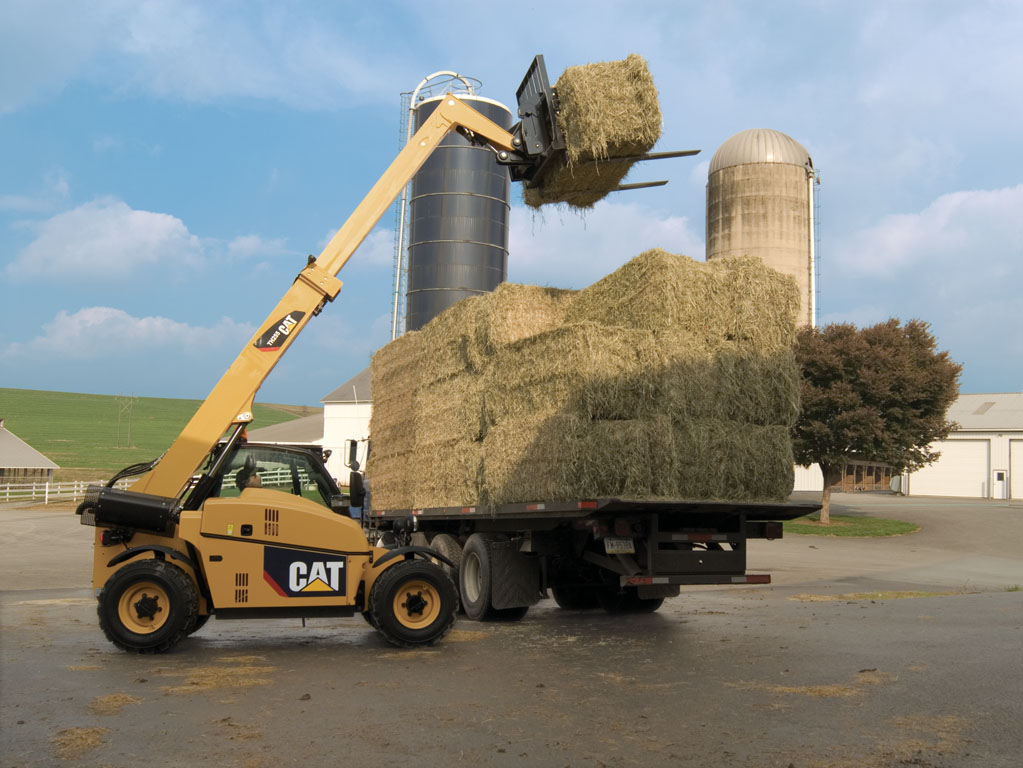

CAT TH255 ACTION
